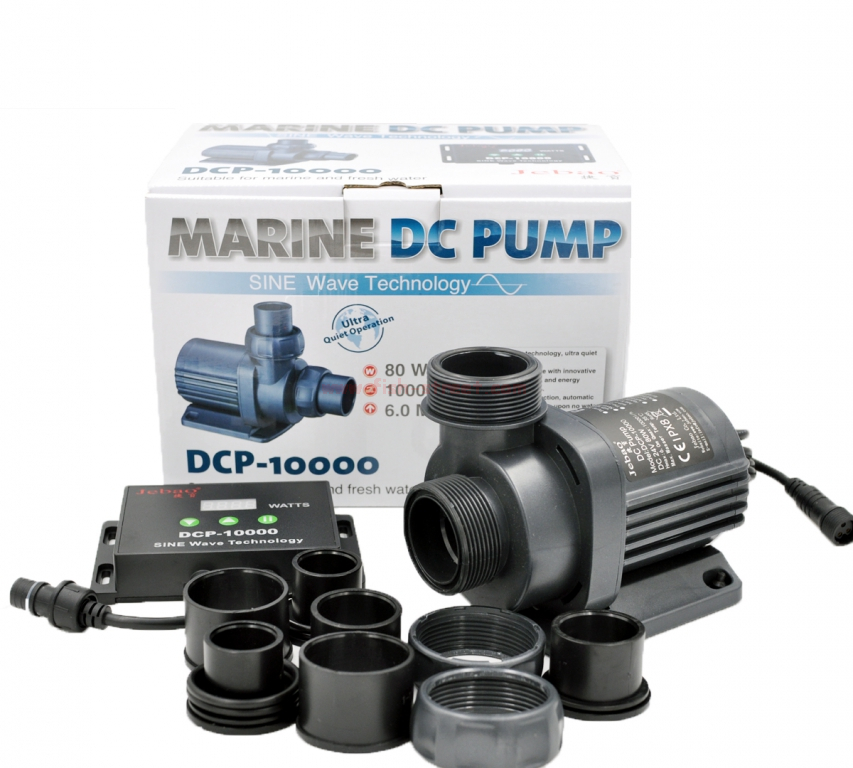

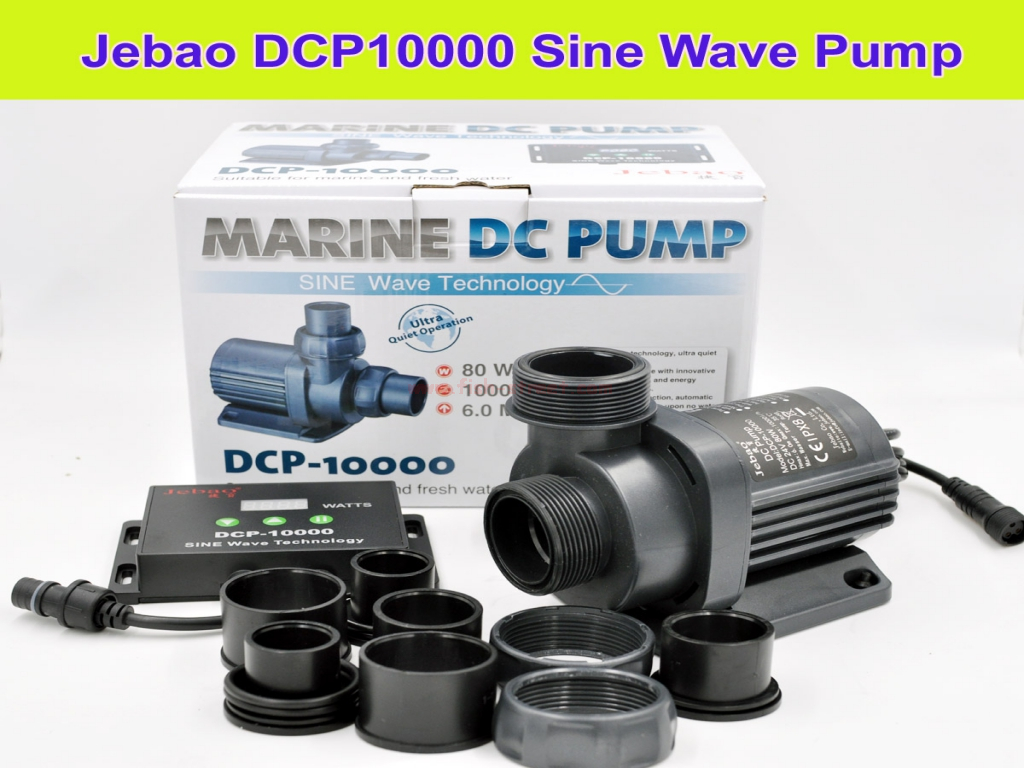

Jebao DCP Sine Wave Water Return Pump

Price$0.00
Points Price0.0
Reward Points0.0
Select Size:
Qty
2016 Oct 28. Fish Street Release new series for the DCP Pump. For the Existing DCP which is release from 2016 March but due to hardware change, Fish Street response for provides better QC for End Customer. The final Stage of the DCP Pump is release now

If you order NOT from Fish Street and using Old controller for DCP Pump, please contact immediately to avoid any harmful for your Tank to got latest DCP controller and Pump



What Difference for the Jebao DCS Pump and DCP Pump ?



DCS Pump is produce on 2015. And DCP pump is release on 2016 Oct for Second Version

All the DCP Pump is using new same for the DCS Swirl Impeller, Plus extra Sine Wave Silent Technology, it can reduce some sound from the Pump(Still have sound). Around release more 20% from the existing DCS Pump

We Strongly Add for Our Backup Battery for your Jebao Pump! Please combine with our Battery with Wifi Controller if you want



  • DC Pump Backup UPS Battery Order here to extra for Order here Electricity Down !

Feature

  • High performance motor with innovation electronics, and energy savig up to 50% than before.
  • Memory Function for Power Supply Off to recall memory
  • Digital Controller
  • IC Electronic Detection, automatic power-off protection upon no water
  • Motor Protection if rotor is blocked
  • Super Quiet Operation
  • Can operate in Marine and Fresh Water
  • No Copper components , safety on your tank!
  • With Wear-resistant Ceramic Shaft, longer operation life
  • 10 Mins Feed Model(Or Pause to resume to normal)
  • Internal Use Only! DC Pump do not suppose for External Use

Base on some of the customer query on the silent on the Pump. We need to mention any pump operation over 6000Litres have a sound on it. And different customer behaviours have different acceptable. Some think DC Pump is silent,some think it have a sound.(Example Pipe connection with plastic tube, vibration between the Glass and bottom, too thickness of the sump glass. Customer behaviours sound is not cover ont the warranty scheme

Specification














ModelSize (L X W X H)Adjustable Flow RateMax HeightHose ConnectorWatt
DCP5000196 x104 x 163mm65% to 100% 4m

3 Hose for 20/25/32



Cover Include

DC24V 50W
DCP6500196 x104 x 163mm65% to 100% 4.5M

3 Hose for 20/25/32



Cover Include

DC24V 50W
DCP8000196 x104 x 163mm65% to 100% 5.5M

3 Hose for 20/25/32

Cover Include

DC24V 4A 80W
DCP10000196 x104 x 163mm65% to 100% 6M

3 Hose for 20/25/32/38mm



Cover Include

DC24V 5A 100W
DCP15000196 x 163mm x 163mm 65% to 100% 6M

3 Hose for 25/32/38mm



Cover Include

DC24V 6A 150W
DCP18000196 x 163mm x 163mm 65% to 100% 9M

3 Hose for 25/32/38/45mm



Cover Include

DC36V 6A 150W


Attention : Below is the Wifi Function (Extra Controller for DCS/DCT Pump)

We have a Aqualink T1 Package with DCS/DCT Pump, it can combine together to make a discount!









Different Between Jebao Controller with Mobile Aqualink Controller



Aqualink Controller
Jebao DC Controller
ModeNormal / Nature / Reef Plus / Gyre / Mix / Wave Box /Reserve / Normal
Night Mode

Can Set  scheduler time to set night mode(1 to 100%). NO Electrical or Lighting affection

Make sure if too small flow below 50%, for your Sump Check valve will Function ~



Customer can set their own night outflow.




         Genius Night mode will not sudden drop the flow when reach on night time, it will auto 60second to count down to slow the flow or wake up 60 second to avoid scray of fish

No this Function

Feed Mode2 Feed Mode Function: Physical Feed mode button + 1mins to 999mins feed time. Schedule time Feed Time Function10 Mins Feed Time
Flow Rate1 to 120% Output (Digital Setting from 1 to 120%, more Accuacy) (Make sure for your Sump check valve will affection on the system operation 10 Speed Mode(Test 65% to 100%) Physical Button, cannot adjustable lower or accuacy flow rate
Stable & SilentStable IC chips to control, Protection of the pump without sudden damage, make the circuit more accuracy and stable, for skimmer operation will more accuracy with same water level. Silent Function of controller will drop more 10% sound compare with orginial controllerNo this function
OverClockMax can overclock to 120% (Depends on the machine physical element)No
WiFiYes . Mobile for Andriod / IOS, continuous upgrade for futureNo
TimerTimer can set as On/ Off(0%), to make the pump as timer function. Like continuous mode / healthy mode (see detail of the website photo) . Same like Apex controller functionNo
CustomUser can set on the pump operation on which mode during schedule timeNo
Control PumpMax can control 3 Pump (A B C), idea to create with schedule time to generation mix different flowMax 2 Pump only on the same time
Cleaing FunctionReserve Impeller to reduce Sand / Stone on your return PumpYes









Want Overclock for your Pump?


For the default controller operation 100%, we can overclock to 120%. Under our Controller the default DCT/DCS3000/ 4000/6000/5000/7000/8000/12000/15000 more 20% Output!  (Depends on the pump factory design, Fish Street will not response for factory change any physical materials on the pump, we based on the existing pump to increase the speed only)



Want WiFi for you DC Pump / Wave Maker Pump ?

Want Schedule with your Pump in Night?


(Example my tank is big, need 2 unit of the Pump, but I want Pump A 30% on Night in 1:00AM to 5:00AM, and 20% on B Pump on 5:01AM to 7:00AM). It's make my coral and fish sleep well

Want to Schedule on your feed time?
The default RW controller just 10mins, for some frozen food  require more time on feeding
For Zeovit  / some of the coral element need more than 10mins on cell division to reduce skimming.  You can now using Feed time to set


For skimmer default 10 mins is not enough when you wash or change water, it will make overflow when it skimmer work again after the feed mode

Feed Time up to 1Mins to 999Mins


Want Mini for your Pump Flow?

For our controller is digital type, it can make for your pump mini 1% change on it ~ Example for control the DC2000 Pump from 100Litres to 2000Litres.

For default Controller which cannot mini for small digital change(Default is 1200Litres to 2000Litres for default controller) We can make the system from 100Litres to 2000Litres. More accuracy like connection with chiller pump using


Want Stable for your Pump?

For the Default controller the IC will affection of the water flow on the venture part. It;s frequency not keep consistency on the Pump Water Level(Skimmer / Flow Rate )

Using our New Technology Controller can make for your Pump keep stable consistance

Want Silent More for your Pump?
Our controller which using the latest technology design, it can reduce a lot of vibration of the Pump. Silent More than default controller * (Sound will depends on the human behaviours, to be compare with existing controller, it is more silent)

Genius Night Mode


Our Night Mode which based on your setting on the schedue time, it will not happen any sensor not working.  When Night mode is On, it will not sudden drop the flow rate from Half. Its will based on your setting , 1 mins to drop down to preset flow rate. Its more nature and humanize


Battery Backup

The Aqualink WiFi controller which can work together with Battery Mode for CoralBox Battery for Jebao. If for your electricity is down, it will auto work with our Battery together(Need to buy and operation half output for emergency mode)


Want Different Mode of WaveMaker / DC Pump?

Normal  / Gyre / Mix  / Reef / Nature / Clockwise Mode

OverClock Mode on your skimmer







How to Install the Lifetime and prevent Vibration of the Jebao DC Pump

It's our suggestion using some Bio Filter add on the DC Pump, can reduce prevent any Stone or sand into impeller. The Bio filter is solve can reduce the sound of the vibration between Jebao DC Pump with Glass. You can order some media in here





 You Tube DCP5000 Pump

https://youtu.be/YDUongHIQ70

Customer Demo Video

http://youtu.be/EkJOiMIV6qg





YouTube Video


YouTube Video 10000L

Latest 3 Way Water Divider! (Not Include on the Order any hose! Only can work for DCP5000 / DCP8000 /DCP6500 / DCP10000! Beware on it) If you require order in here:
