Fish Street is delighted to announce the release of the new Beamswork LED lighting units!
Utilising the Latest EVO Green World LED lighting. Cost-effective, low watt, with super-safe DC power supply and comes with additional lens kits. These units provide an exemplary performance with an output of close to 4100 lumens, they are suitable for growing both LPS and SPS.
Features:
Timer:
Simple Time Setting & Programming below *this product does not include a manual instruction*
1. First, attach the electrical cord of OEM digital timer unit to the access port on the side of LED light fixture (Timer Ready) before plugging the main power cord to the wall outlet.
2. Now, the readout of OEM digital timer unit blinks, all LED bulbs blinks once, and the manual on/off switch is overridden after the power source is engaged .
3. At any time, press & hold both "green" and "blue" buttons for a couple seconds to set a current time; enter # of hour with "green" button; enter # of minute with "blue" button; your current time now is set.
4. With your current time already set, press & hold "green" button for a couple seconds; the readout shows "ON", then enter your desired time (hour & minute) to power on all 10,000k LEDs (Reef LED fixture) or larger # of LEDs (Fresh Water Planted LED fixture) automatically; momentarily, the readout shows "OFF", then enter your desired time (hour & minute) to power off all 10,000k LEDs (Reef LED fixture) automatically , or vice versa.
5. Also with your current time already set, press & hold "blue" button for a couple seconds; the readout shows "ON", then enter your desired time (hour & minute) to power on all Actinic Blue LEDs (Reef LED fixture) or smaller # of LEDs (Fresh Water Planted LED fixture) automatically; momentarily, the readout shows "OFF", then enter your desired time (hour & minute) to power off all Actinic Blue LEDs (Reef LED fixture) automatically , or vice versa.
6. Repeat all procedures if the OEM digital timer has been reset to default (the readout blinks) or the main power source has been cut off.
Specification

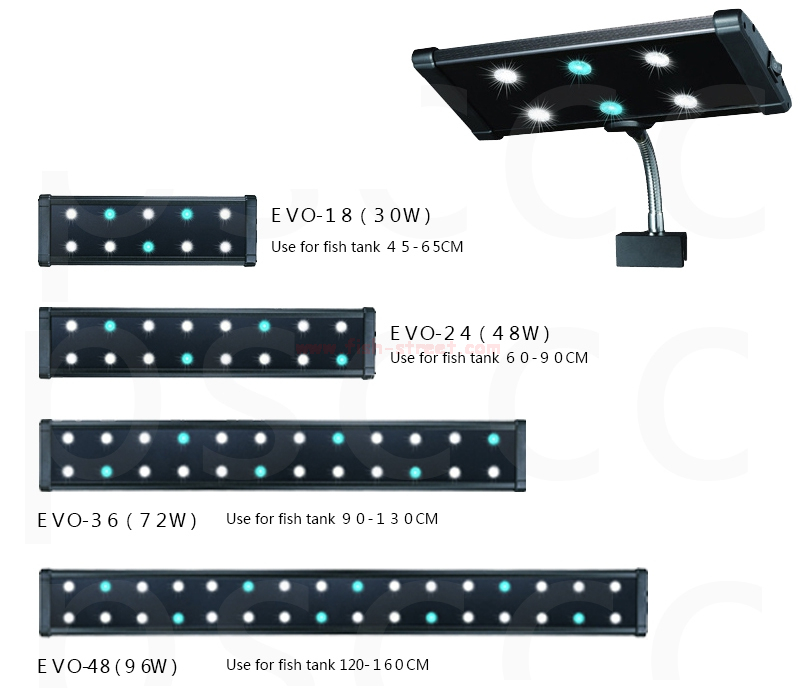

Model |
White Chips |
Blue Chips |
Size |
Power |
Lumen |
EVO18 |
16 |
8 |
42 x 22 x 3.1cm |
72W DC 15V 4A |
2700 |
EVO24 |
20 |
8 |
57.2 x 22 x 3.1 |
84W DC15V 6A |
4100 |
EVO36 |
32 |
12 |
87.7 x 22 x 3.1 |
144WDC15V 5A |
5400 |
EVO48 |
48 |
16 |
117 x 22 x3.1cm |
192W DC6A x2 |
8200 |
YouTube Video (24"Inch Model)
http://www.youtube.com/watch?v=XJgohFayPT0
New EVO18 Snake Eye Lighting
