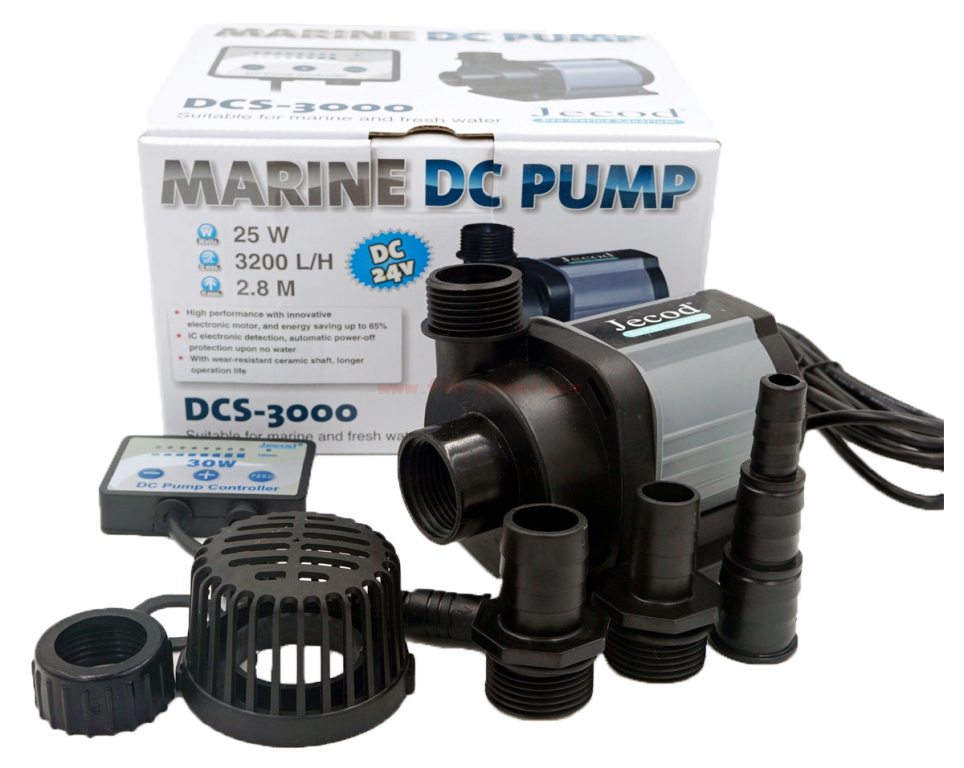

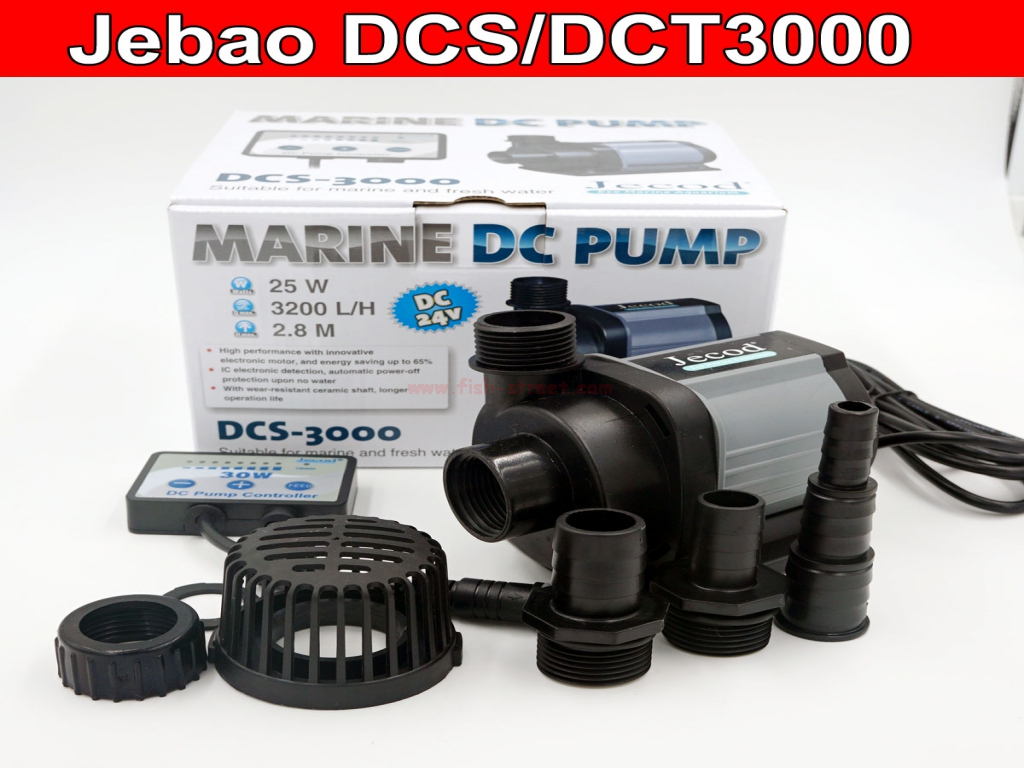

Jebao Coral Box DCA/DCS3000 Water Return Pump :: Reviews

Price$0.00excl. TAX
Reward Credits$0.00
Select Type:
Qty
  • DC Pump 24V Safetly
  • From 1700L to 3000L
  • Controller Feed Mode



2012 Nov Fish Street Distributor Jebao WP40
2013 May Fish Street First Release Jebao Wp-25
2013 Oct Fish Street First Release Jebao Wp-60 Jebao Wp-10
2014 Feb Fish Street First Release for Jebao Twins controller
2014 May Interzoo Fish Street help jebao factory to First Release RW-4 RW-8 RW-15 Rw-20
2014 Oct First Release Jebao DP4
2015 Jan First Release Jebao DP2
Fish Street involves on the factory to help and develop much Jebao item. Follow us as the big replacement support center.  For replacement kits you can order with us which factory not supply

2/8/2014 Australia Warehouse Start, Please Order the item selection Australia Postal to delivery to save shipping fee if you in Australia

2/8/2014 The New Jebao Version DC 3000 Design Return Pump is avaiable for Fish Street Store Now!

EU / UK / US / AU Plug avaiable FULL in stock now

From 110V to 240V Voltage, WorldWide Avaiable!

New Controller Arrived in our website (Difficut in Youtube Video)

DCT/DCS3000 Controller from 1800Litres to 3000Litres

Feature

  • High performance motor with innovation electronics, and energy savig up to 50% than before.
  • IC Electronic Dection, automatic power-off proteion upon no water
  • Motor Protection if rotor is blocked
  • Super Quiet Operation
  • Can operatin in Marine and Fresh Water
  • No Copper components , safety on your tank!
  • With Wear-resistant Ceramic Shaft, longer operation life
  • 10 Mins Feed Model(Or Pause to resume to normal)
  • Internel Use Only! DC Pump do not suppose for External Use

Base on some of the customer query on the silent on the Pump. We need to mention any pump operation over 3000Litres have a sound on it. And different customer behaviours have different acceptable. Some think DC Pump is silent,some think it have a sound.(Example Pipe connection with plastic tube, vibration between the Glass and bottom, too thickness of the sump glass. Customer behaviours sound is not cover ont the warranty scheme

Specification

Model Size (L X W X H) Adjustable Flow Rate Max Height Hose Connector Watt

DCS3000

 14 x 9 x 11cm 1800L to 3000L  2.7M

1 Hose for 8/12/16mm

No Cover

 DC24V 25W






Attention : Below is the Wifi Function (Extra Controller for DCS/DCT Pump)

We have a Aqualink T1 Package with DCS/DCT Pump, it can combine together to make a discount!









Different Between Jebao Controller with Mobile Aqualink Controller



Aqualink Controller
Jebao DC Controller
ModeNormal / Nature / Reef Plus / Gyre / Mix / Wave Box /Reserve / Normal
Night Mode

Can Set  scheduler time to set night mode(1 to 100%). NO Electrical or Lighting affection

Make sure if too small flow below 50%, for your Sump Check valve will Function ~



Customer can set their own night outflow.




         Genius Night mode will not sudden drop the flow when reach on night time, it will auto 60second to count down to slow the flow or wake up 60 second to avoid scray of fish

No this Function

Feed Mode2 Feed Mode Function: Physical Feed mode button + 1mins to 999mins feed time. Schedule time Feed Time Function10 Mins Feed Time
Flow Rate1 to 120% Output (Digital Setting from 1 to 120%, more Accuacy) (Make sure for your Sump check valve will affection on the system operation 10 Speed Mode(Test 65% to 100%) Physical Button, cannot adjustable lower or accuacy flow rate
Stable & SilentStable IC chips to control, Protection of the pump without sudden damage, make the circuit more accuracy and stable, for skimmer operation will more accuracy with same water level. Silent Function of controller will drop more 10% sound compare with orginial controllerNo this function
OverClockMax can overclock to 120% (Depends on the machine physical element)No
WiFiYes . Mobile for Andriod / IOS, continuous upgrade for futureNo
TimerTimer can set as On/ Off(0%), to make the pump as timer function. Like continuous mode / healthy mode (see detail of the website photo) . Same like Apex controller functionNo
CustomUser can set on the pump operation on which mode during schedule timeNo
Control PumpMax can control 3 Pump (A B C), idea to create with schedule time to generation mix different flowMax 2 Pump only on the same time
Cleaing FunctionReserve Impeller to reduce Sand / Stone on your return PumpYes









Want Overclock for your Pump?


For the default controller operation 100%, we can overclock to 120%. Under our Controller the default DCT/DCS3000/ 4000/6000/5000/7000/8000/12000/15000 more 20% Output!  (Depends on the pump factory design, Fish Street will not response for factory change any physical materials on the pump, we based on the existing pump to increase the speed only)



Want WiFi for you DC Pump / Wave Maker Pump ?

Want Schedule with your Pump in Night?


(Example my tank is big, need 2 unit of the Pump, but I want Pump A 30% on Night in 1:00AM to 5:00AM, and 20% on B Pump on 5:01AM to 7:00AM). It's make my coral and fish sleep well

Want to Schedule on your feed time?
The default RW controller just 10mins, for some frozen food  require more time on feeding
For Zeovit  / some of the coral element need more than 10mins on cell division to reduce skimming.  You can now using Feed time to set


For skimmer default 10 mins is not enough when you wash or change water, it will make overflow when it skimmer work again after the feed mode

Feed Time up to 1Mins to 999Mins


Want Mini for your Pump Flow?

For our controller is digital type, it can make for your pump mini 1% change on it ~ Example for control the DC2000 Pump from 100Litres to 2000Litres.

For default Controller which cannot mini for small digital change(Default is 1200Litres to 2000Litres for default controller) We can make the system from 100Litres to 2000Litres. More accuracy like connection with chiller pump using


Want Stable for your Pump?

For the Default controller the IC will affection of the water flow on the venture part. It;s frequency not keep consistency on the Pump Water Level(Skimmer / Flow Rate )

Using our New Technology Controller can make for your Pump keep stable consistance

Want Silent More for your Pump?
Our controller which using the latest technology design, it can reduce a lot of vibration of the Pump. Silent More than default controller * (Sound will depends on the human behaviours, to be compare with existing controller, it is more silent)

Genius Night Mode


Our Night Mode which based on your setting on the schedue time, it will not happen any sensor not working.  When Night mode is On, it will not sudden drop the flow rate from Half. Its will based on your setting , 1 mins to drop down to preset flow rate. Its more nature and humanize


Battery Backup

The Aqualink WiFi controller which can work together with Battery Mode for CoralBox Battery for Jebao. If for your electricity is down, it will auto work with our Battery together(Need to buy and operation half output for emergency mode)


Want Different Mode of WaveMaker / DC Pump?

Normal  / Gyre / Mix  / Reef / Nature / Clockwise Mode

OverClock Mode on your skimmer







How to Install the Lifetime and prevent Vibration of the Jebao DC Pump

It's our suggestion using some Bio Filter add on the DC Pump, can reduce prevent any Stone or sand into impeller. The Bio filter is solve can reduce the sound of the vibration between Jebao DC Pump with Glass. You can order some media in here







Customer Demo Video

http://youtu.be/EkJOiMIV6qg





YouTube Video



YouTube Video 10000L



Latest 3 Way Water Divider! (Not Include on the Order any hose! Only can work for DC12000! Beware on it) If you require order in here:



 Easy to Handle the Pump connection? Order our PVC drain Pipe connection tube here





Found: 26
Rate it
Name
Email
One-line summary
Your Review
Validation Code

Guest on 13 Jun 2018, 1:01 PM
очень хороший насос.Рекомендую
0 0
Comment Like Dislike
Name or alias
Email
Your Comment
Validation Code
Wenderson Guest on 13 Jun 2018, 12:56 PM
Enviopara o Brasil foi realizado no dia seguinte após a compra, em 18 de transito, chego em minha residencia. Otimo produto sem nenhum defeito.
0 0
Comment Like Dislike
Name or alias
Email
Your Comment
Validation Code
Kenny on 10 Jun 2018, 10:30 AM
Kanon
Bra pump , tyst
0 0
Comment Like Dislike
Name or alias
Email
Your Comment
Validation Code
Gophia Guest on 17 Apr 2018, 2:27 AM
Powerful and quite
Fantastic pump for the price, powerful and super quite 1 inch threaded outlet was a nice feature which allow me to hook up the pump to my existing plumbing very easily.
0 0
Comment Like Dislike
Name or alias
Email
Your Comment
Validation Code
Davide Guest on 24 Feb 2018, 7:00 AM
Ottima pompa
Silenziosa, buona spinta, raccomandata.
0 0
Comment Like Dislike
Name or alias
Email
Your Comment
Validation Code
Andrey Guest on 19 Dec 2017, 5:59 AM
Dc pomp
Gorgeous design. Very quiet. I recommend.
0 0
Comment Like Dislike
Name or alias
Email
Your Comment
Validation Code
Brady Guest on 22 Sep 2017, 9:49 PM
Great pump!
0 0
Comment Like Dislike
Name or alias
Email
Your Comment
Validation Code
Italfish Guest on 10 Aug 2017, 5:08 AM
Perfekt!
0 0
Comment Like Dislike
Name or alias
Email
Your Comment
Validation Code
Thiago Almeida Guest on 18 Jun 2017, 2:31 AM
Ótimo produto
0 0
Comment Like Dislike
Name or alias
Email
Your Comment
Validation Code
Evgeny on 14 May 2017, 8:29 PM
Хорошая помпа
Искал очень тихую помпу и не прогодал , компактная , всем рекомендую
0 0
Comment Like Dislike
Name or alias
Email
Your Comment
Validation Code
1 questions were asked.
Ask a Question
Found: 1
Name
Email
Your Question
Validation Code

Charles Guest on 8 May 2019, 7:46 PM
What is the difference DCS and DCT ?
Reply
DCT Pump is produced in 2014. DCS Pump is produced on 2015 Aug which based on the DCT weakness to develop.

Jebao DCS Pump using new swirl impeller, make it more silent and reduce vibration. The Hmax also increase around 25% than the DCT Pump
